[KuBand] AEEC KSAT Subcommittee - AMU / Fiber Optics Requirements Session

Wed Mar 24 22:10:34 EDT 2021

Dear Ku-band and Ka-band Satellite Communications Experts,

The next KSAT Subcommittee Online Conference is scheduled for April 7, 2021.

During the last Fiber Optics Subcommittee Online conference (held March 24, 2021), it was requested that the KSAT Subcommittee thoroughly describe the required 26 Fiber Optics connection (see Figure below).
Include the Signal name (e.g., AMU Ref 1) and all possible information on type (i.e.: Ethernet/Digital/Discrete/Control/RF or LF/Ref Freq), What is the Frequency/the Speed? What is the maximum wire length for each connection? (longest possible length from equipment in pressurized vessel to furthest possible connection on equipment outside the aircraft (antenna area in non-pressurized environment), expected number of disconnects, etc.

Required for April 7th meeting (Goal is to complete during the meeting and submittal to FOS after the meeting).

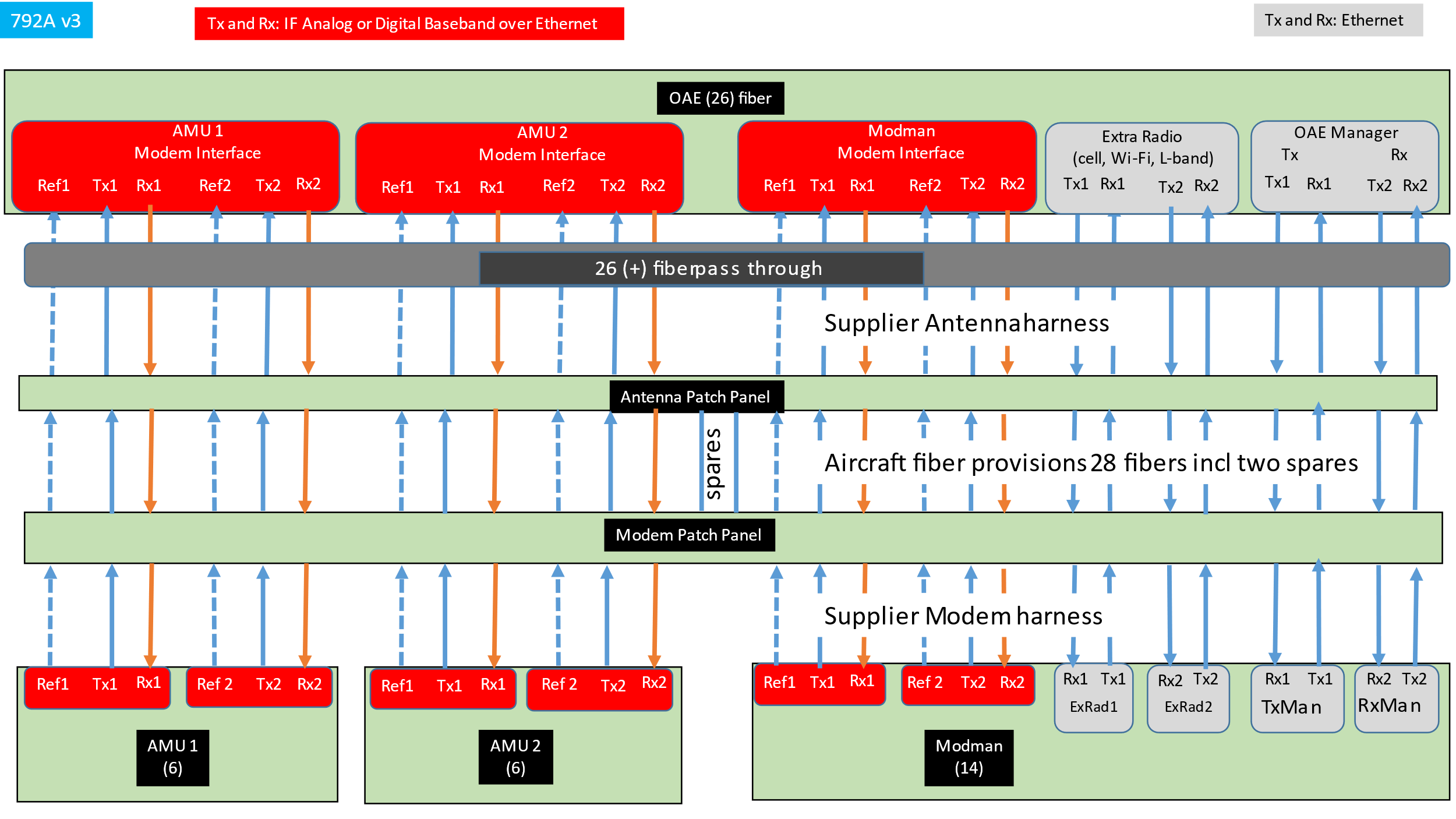

[cid:image001.png at 01D720F4.7259DD40]
                                         FIGURE 1 - FIBER OPTICS KSAT SYSTEM

Please let me know if you have any questions (jose.godoy at sae-itc.org<mailto:jose.godoy at sae-itc.org>).
